Diamond 15

Standard Features

  • Single Auger/ 23 rpm @ 540 rpm tractor PTO Speed
  • Heavy Duty Planetary Gearbox 23,3 : 1 ratio
  • 3CR12 Stainless Steel Liners inside the bin
  • Dinamica Generale DG400 Standard Scale + 4 load cells
  • Two Speed Gearbox 1,8:1 ratio
  • PTO Drive shaft, A8
  • Anti-Overflow ring
  • 480/45 R17 Tyres + 90 x 90 Axle, 8 Stud.

Optional Extras

  • Dinamica Generale DG500/DG600 Smart Scale
  • Magnet on discharge conveyor.
Cubic meter: 15m³
Weight Empty: 5080kg
Maximum Load:
(Dependant on the density of the ration).		 5500kg
Recommended Tractor Size with Hydraulics: 80kW
Side wall thickness:
(6mm Mild Steel + 1.6mm Stainless Steel).		 7.6mm
Floor thickness: 20mm



Cutting Blades 15
Round Serrated Ninja Blades  8
Pickup Flight Width  1030mm
Flight thickness Middle & Top Flight + S/Steel Roundbar  12mm
Flight thickness Middle & Top Flight + S/Steel Roundbar 16mm

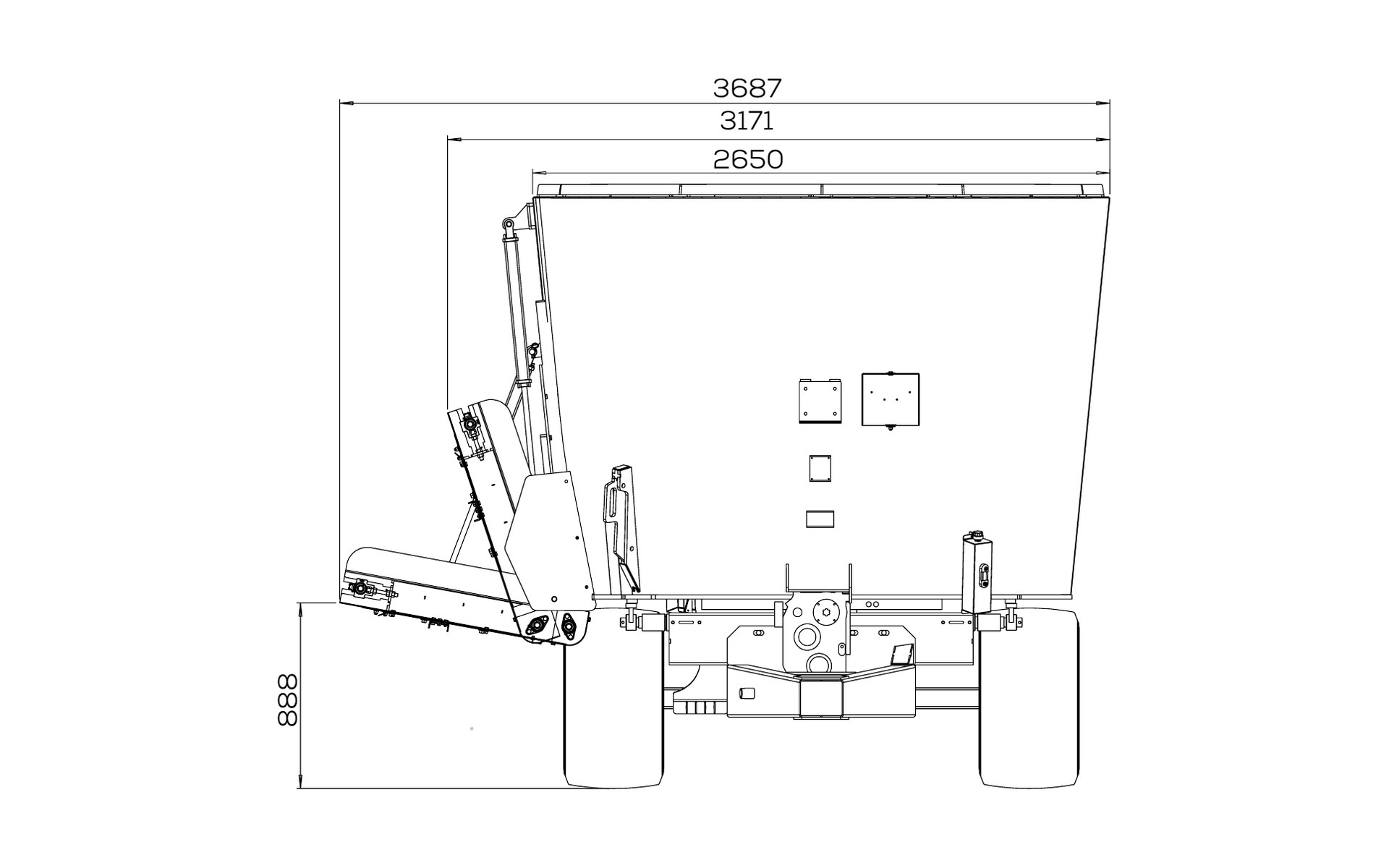

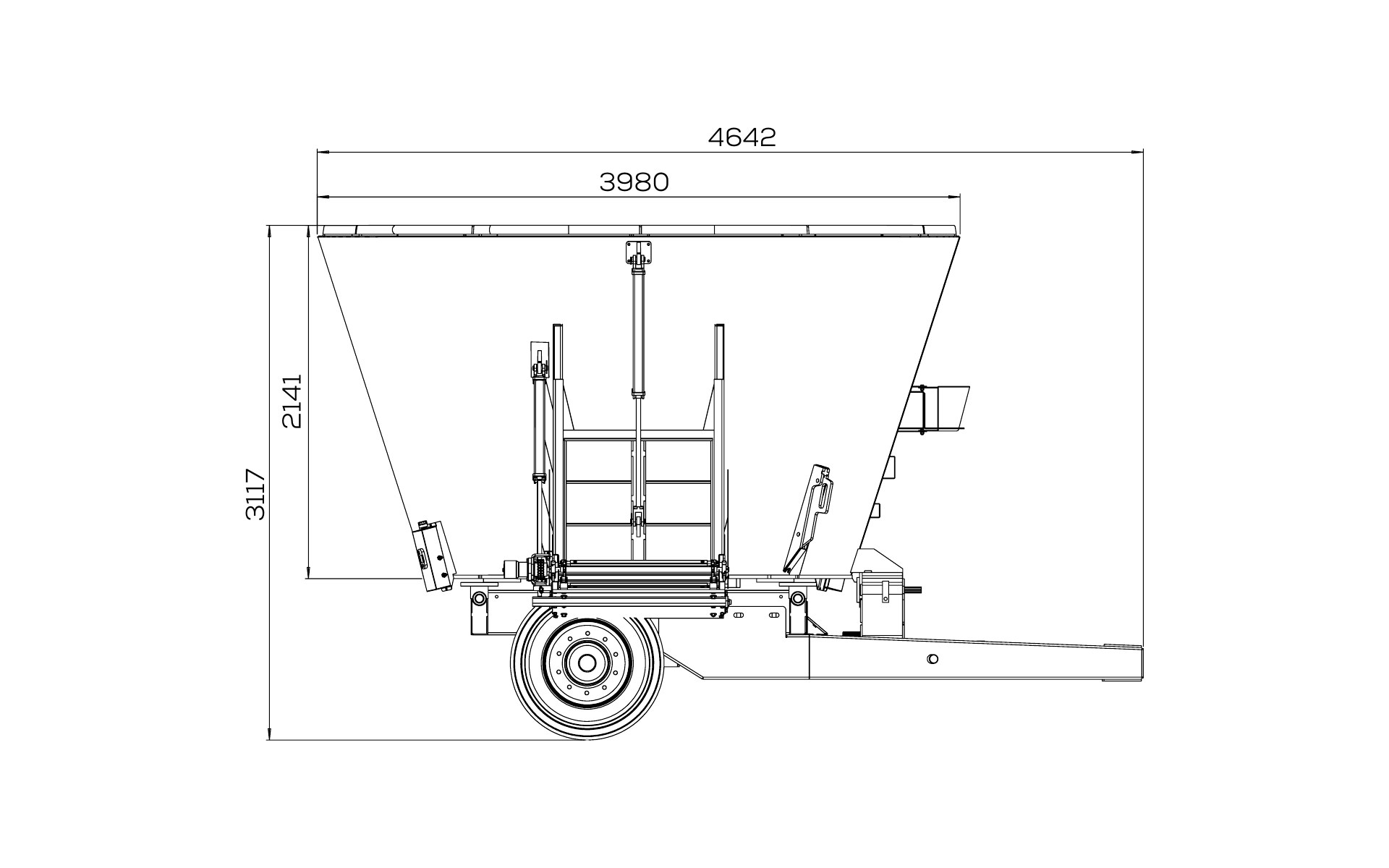

Dimensions:

(click to enlarge)

Diamond 15

Standard Features

  • Single Auger/ 23 rpm @ 540 rpm tractor PTO Speed
  • Heavy Duty Planetary Gearbox 23,3 : 1 ratio
  • 3CR12 Stainless Steel Liners inside the bin
  • Dinamica Generale DG400 Standard Scale + 4 load cells
  • Two Speed Gearbox 1,8:1 ratio
  • PTO Drive shaft, A8
  • Anti-Overflow ring
  • 480/45 R17 Tyres + 90 x 90 Axle, 8 Stud.

Optional Extras

  • Dinamica Generale DG500/DG600 Smart Scale
  • Magnet on discharge conveyor.
Cubic meter: 15m³
Weight Empty: 5080kg
Maximum Load:
(Dependant on the density of the ration).		 5500kg
Recommended Tractor Size with Hydraulics: 80kW
Side wall thickness:
(6mm Mild Steel + 1.6mm Stainless Steel).		 7.6mm
Floor thickness: 20mm



Cutting Blades 15
Round Serrated Ninja Blades  8
Pickup Flight Width  1030mm
Flight thickness Middle & Top Flight + S/Steel Roundbar  12mm
Flight thickness Middle & Top Flight + S/Steel Roundbar 16mm



Dimensions:

(click to enlarge)

R100000,00
