Diamond 12

Diamond 12

Standard Features

  • Single Auger/ 33,5 rpm @ 540 rpm tractor PTO Speed
  • Heavy Duty Planetary Gearbox 16,13 : 1 ratio
  • 3CR12 Stainless Steel Bin Liners
  • Dinamica Generale DG400 Standard Scale + 4 load cells
  • PTO Drive shaft, A8
  • Anti-Overflow ring
  • 380/55 R16.5 Tyres + 80 x 80 Axle, 8 Stud

Optional Extras

  • Dinamica Generale DG500/DG600 Smart Scale
  • Two Speed Gearbox
  • Stationary Option

Auger Optional Extras

  • Stainless Steel Liners
  • Auger Magnet
  • Bale Breaker
Cubic meter: 12m³
Weight Empty: 3900kg
Maximum Load:
(Dependent on the density of the ration)		 4500kg
Recommended Tractor Size with Hydraulics: 80kW
Side wall thickness:
(6mm Mild Steel + 1.5mm Stainless Steel)		 7.5mm
Floor thickness: 20mm
Cutting Blades: 13
Serrated Ninja Blades: 5
Pick-up Width: 940mm
Flight thickness Middle & Top Flight + S/Steel Roundbar: 12mm
Flight thickness Bottom Flight + S/Steel Roundbar: 16mm
REQUEST QUOTE
Diamond 12 single auger feed mixer by Diamond Implements

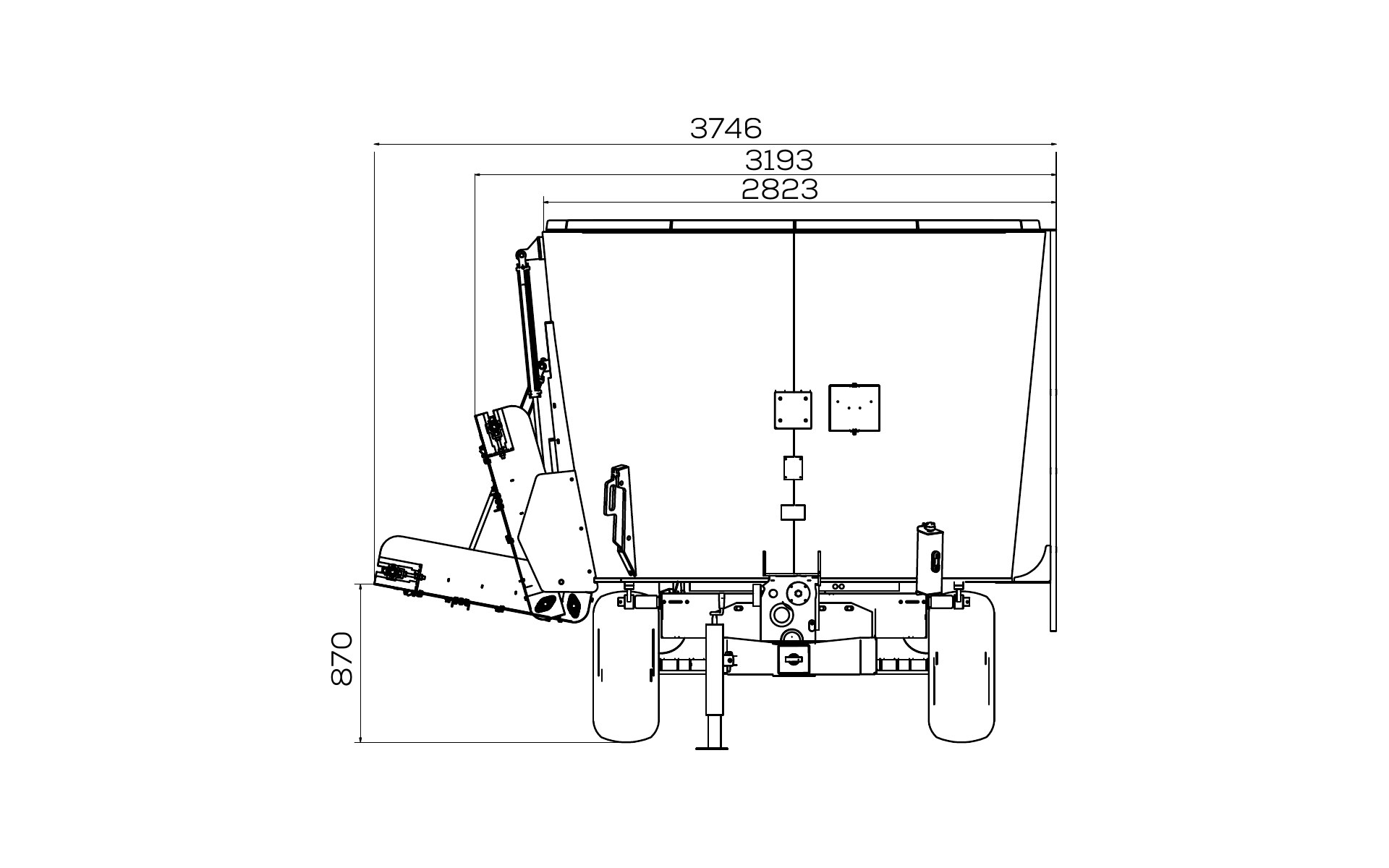

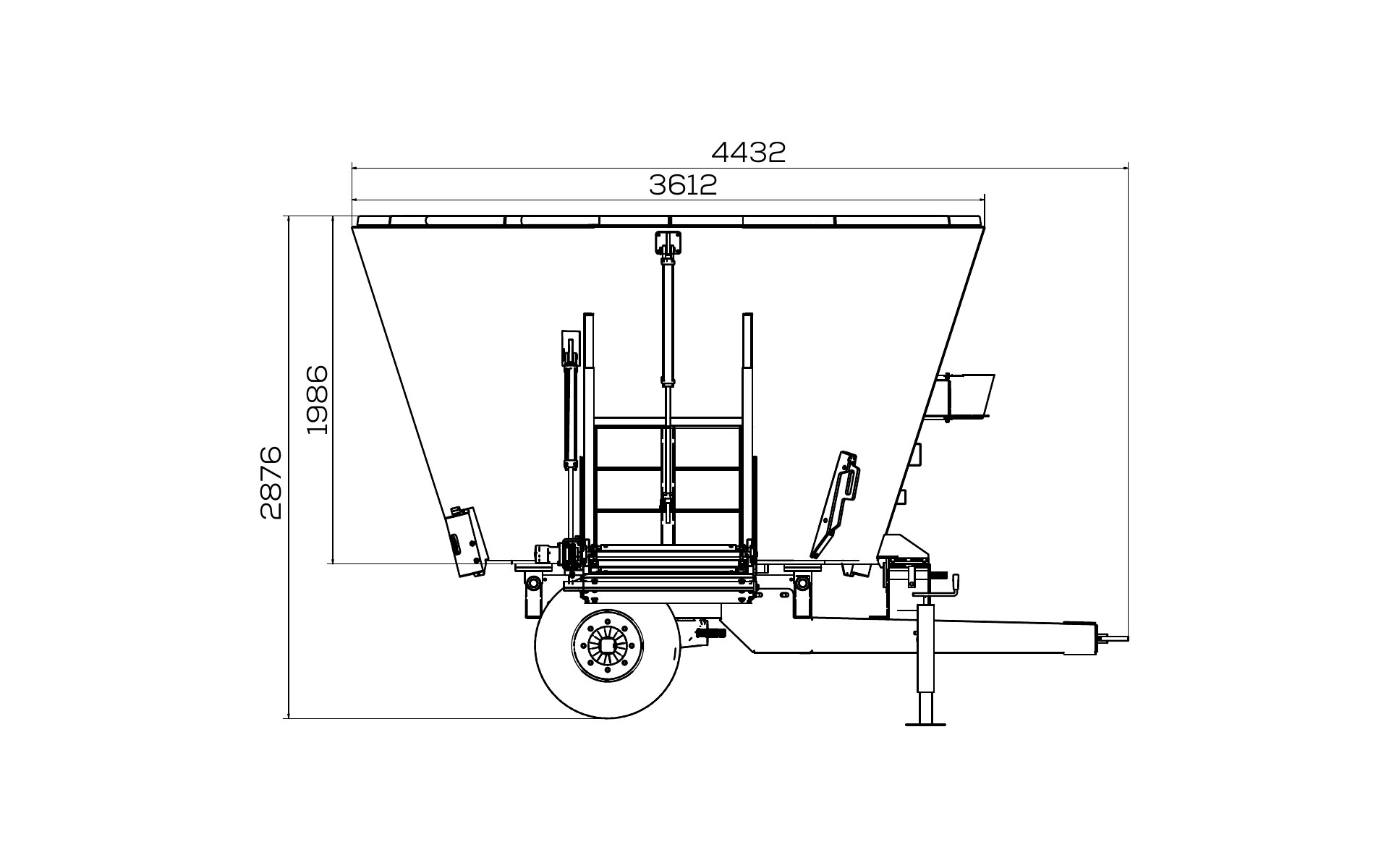

Dimensions:

(click to enlarge)

Video:

Coming Soon

Downloads:

DOWNLOAD BROCHURE
DOWNLOAD MANUAL
Diamond 12 single auger feed mixer by Diamond Implements

Diamond 12

Standard Features

  • Single Auger/ 33,5 rpm @ 540 rpm tractor PTO Speed
  • Heavy Duty Planetary Gearbox 16,13 : 1 ratio
  • 3CR12 Stainless Steel Bin Liners
  • Dinamica Generale DG400 Standard Scale + 4 load cells
  • PTO Drive shaft, A8
  • Anti-Overflow ring
  • 380/55 R16.5 Tyres + 80 x 80 Axle, 8 Stud

Optional Extras

  • Dinamica Generale DG500/DG600 Smart Scale
  • Two Speed Gearbox
  • Stationary Option

Auger Optional Extras

  • Stainless Steel Liners
  • Auger Magnet
  • Bale Breaker

Dimensions:

(click to enlarge)
